Tappets, Shims And Plugs

Job Date 2 Oct 2017

By Ren Withnell

This is the one I've been dreading. Getting and setting the tappets on my little CBF125 is a couple of hours work if I'm doing everything properly. Alas having once checked the tappets before on the big 500 at 8,000 miles (CB500X Adjusting The Tappets) as a precaution I know what is coming. This is going to take much more than a couple of hours. Urgh.

Firstly there's the side panels. Then there's the fairing panels. Then there's the tank. Then...then there's that blasted plastic tray located under the tank. This - this is living proof that motorcycles are designed to be built in a factory without one single flying - erm - damn given to any poor sap cursed with the task of actually servicing the machine.

I'm sure in the factory it goes swimmingly well. I suspect the wiring harness is passed through the plastic tray by an incredibly adept technician before being wired in to the headlights at one end and the rest of the bike at the other. However this traps the plastic tray unless you are willing to entirely de-wire the whole harness. And I'm not. It takes a considerable amount of patience to remove the tray.

THe nest of wires, parts, connectors, pipes and clips under the tank of the CB500X
Yeah, just pop this little lot off and away ya go.

Aha! So that's it, we're at the rocker cover. Oh, no, I forgot to mention the peculiar rubber mat that requires the radiator top bolt to be removed before it can be removed. Oh, no, I forgot to mention the top radiator hose that needs to be removed otherwise the rocker cover can be loosened but not removed. Oh yeah.

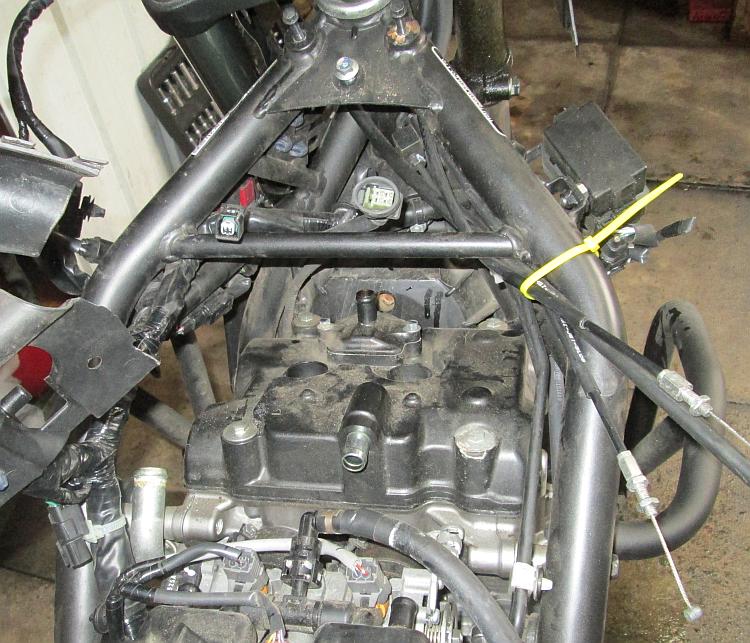

At last Ren has access to the rocker cover on the CB500X
It needs a jolly good clean before it take it all off.

The whole ethos of this service is to take my time. I'm tired, it's raining outside the shed and I've had enough excitement for one day. I am happy to be at the stage where I can finally do the job at hand.

2 days later and I'm back in the shed, feeling refreshed and ready with spanners and feeler gauges. Inlet - 0.16mm +/- 0.03 and Exhaust 0.27mm +/- 0.03

The inlets  - 0.20, 0.13, 0.15, 0.15. Hmmmmm. the 0.20 is just over tolerance but then a slack tappet is a happy tappet. The 0.13 is within the +/- 0.03 but it's on the cusp. By ridiculous luck the 0.20 has a 1.95 shim in and the 0.13 has a 2.00 shim. By swapping them I get 0.15 and 0.18 gaps, all good.

The exhausts - 0.21, 0.23, 0.28, 0.28. My shim collection comes in 0.05 steps. I get the 0.21 up to 0.26 and the 0.23 up to 0.28, all within tolerances.

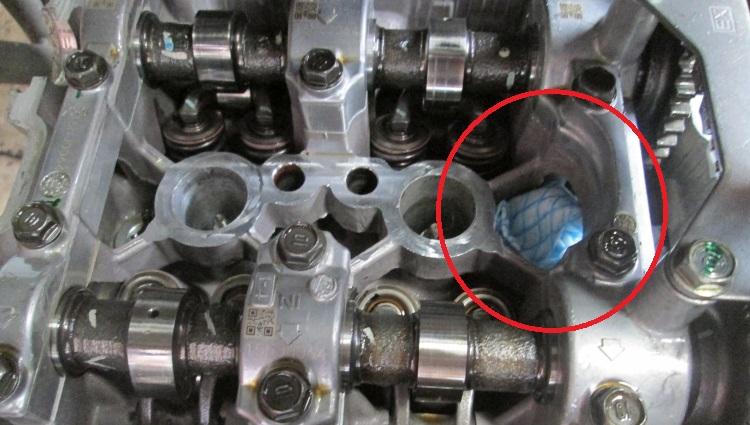

A J cloth is stuffed into the cylinder head to stop shims dropping into the engine
DO NOT lose any shims into the cam chain tunnel. Nightmare.

I'd be a blasted fool not to change the spark plugs now as I'm already looking at them. The old plugs have a perfect colour to them, I'd expect nothing less from a fuel injected computerised self monitoring system. The new plugs are pre-gapped but I check them anyhow, 0.8-0.9mm. I wind them in and nip them up.

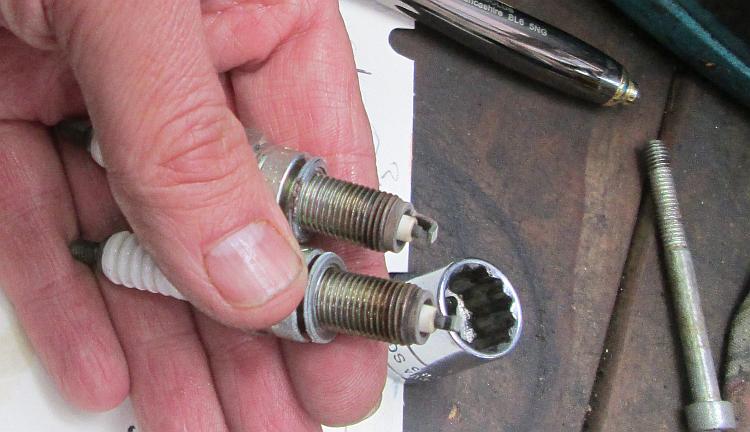

The spark plugs from the Honda look a tan colour, just right
The old plugs look spot on colour-wise.

All I have to do now is put it all back together.

Again having time on my side I'm cleaning as I'm going. Clean the rubber sheet that covers the rocker cover. Clean the plastic tray that holds the electrics. Clean the top of the radiator while I can. Wipe down the EGR valve (consider removing it - not yet). Clean the spark plug caps. I'm hoping I won't see these things for at least another 16,000 miles so now's the best time to clean them.

So that's that bit of the service done. I'm glad it's over, it bothers me that it actually all went rather well, it's unnerving.
