Bad Vibes Maaaaaan!
Blog Date - 01 May 2025
Regular folks will know Sharon was suffering from bad vibes on her new Z500. Not the transcendental cosmic bad vibes from cheesy 60s and 70s movies but real vibrations. There were/are 2 different sets of vibes. One was a rattle somewhere around the engine at almost exactly 2,900 rpm. The other is a harshness through the bars as she approaches motorway speeds.
Let us deal with the first one, the buzz, the almost a metallic clatter at 2,900 rpms. This did not start until we fitted the engine bars - therefore it would be logical to presume something about the engine bars had lead to this rattle. It is not beyond the realm of possibility it could be something else, but it seems mostly likely the engine bars.

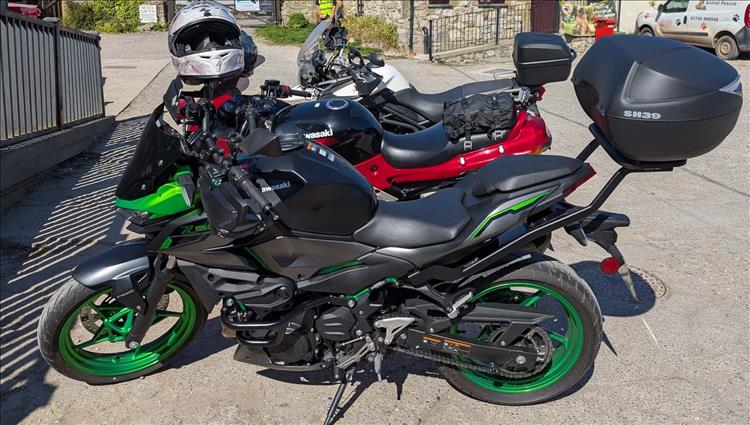

The Z5 is slowly but surely getting "tour ready".
We retorqued the bolts that hold the engine bars to the frame. Nope. We listened carefully, we touched and grabbed things, we stood in different places, plugged this ear then that, pushed things, pulled things, shook things, and all to no avail. While always replicable keeping the motor at exactly 2,900 rpm was also proving difficult.
Eventually with guidance from this here blog and the interweb we removed the left engine bar - because the noise seemed to be oh-so-slightly louder on the left. Gone! So it's definitely at least attributable to the engine bars, particularly the left engine bar. Well that's something at least, I thought the engine internals were falling apart.
We both agree we desire to keep the engine bars fitted because even a simple topple in a car park can put a hole in the side of a crankcase and ruin a holiday as well as a bank balance. But that rattle is driving Sharon bonkers and Sharon moaning about it is driving me bonkers. Oh what to do!!
Science innit. Rattles of this nature at a particular rpm are due to resonances. Resonances? Yes. A park swing has a resonance, a pendulum has a resonance, a ruler held against a desk and twanged has a resonance. If you push a park swing in time with that resonance it's easy to really get that swing swinging high, we seem to understand that almost instinctively.
Well at 2,900 rpms between the engine bars and the rest of the bike something somewhere is meeting it's resonant frequency and getting all carried away. We need to change something about the engine bars to change the frequency and/or dampen the vibrations. I get to thinking about running a strap between the left and right engine bar, fitting bags to the engine bars, fitting weights, all kinds of hairbrained notions.
Then Sharon, bless her, says "worrabout fillin' it with sand?" Now don't be thinking she's a genius, she'd read somewhere online that someone had done this successfully. Nah... no, hmmm... wait, errr...actually that's not as stupid as it first seems. The sand will change the weight of the engine bars AND, AND also act as a dampener. Hmmmm, this might just work.
Due to the design of the left engine bar we cannot fill the main structure - without drilling holes in the tubing at least. We can however fill one side of the cross tube which I shall try to show in a delightful image. This tube has an open end see. That being said an open end also means the sand would all too swiftly fall right out again.

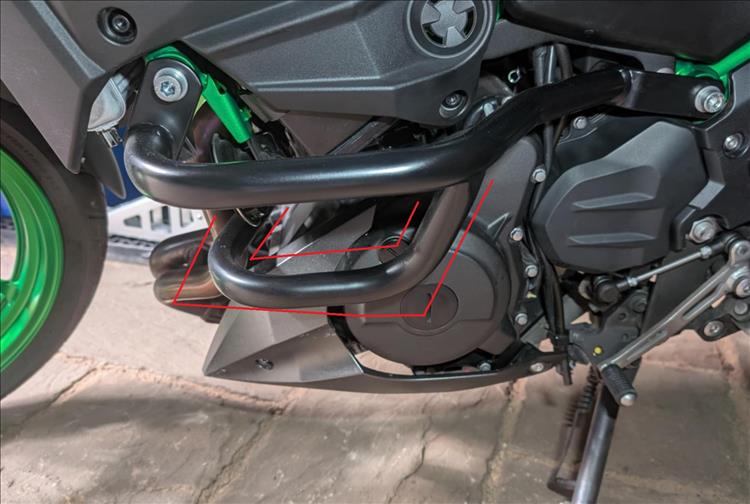

Fill this section with sand?
We need a bung to keep the sand in. A big blob of epoxy resin? We ain't got any right here right now and I wonder if expansion and contraction of the tube would eventually loosen the bung. A rag stuffed in there? Nah. We scour Sharon's cupboards for potential bungs. "Rubber" says I "something rubbery". Sharon returns from the shed with 2 tank mount rubbers, the origin of which escapes both our memories.

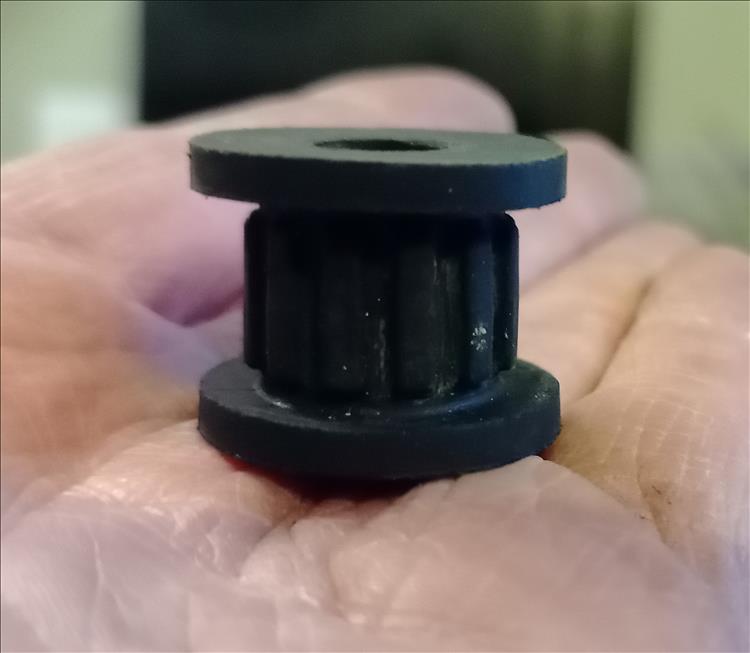

We think it's a tank mount rubber doodaa whatnot.
"Sharon that sand needs to be dry, we don't want to encourage rusting from the inside". Sharon sits gleefully blow-drying the sand she's found from some garden project for half an hour. With 2 washers and a M6 bolt, the judicious use of scissors and a nyloc nut I craft an expandable bung. Essentially the rubber is pushed into the sand filled tube and the nut/bolt tightened thus squeezing out the rubber.

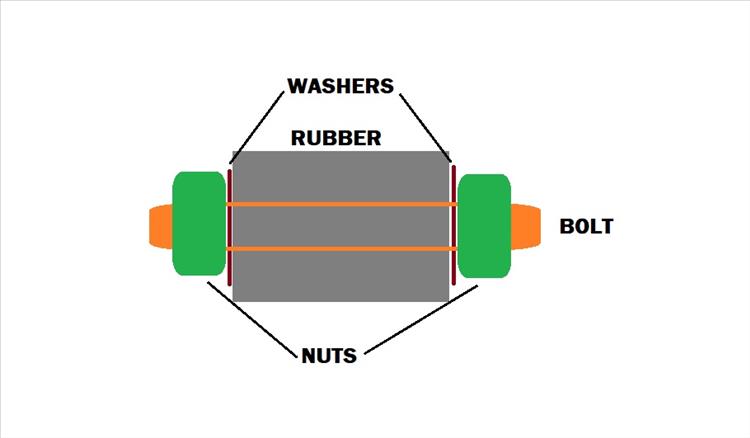

Tighten the nut(s) which squeezes out the rubber making a bung.
The engine bar has gained some mass. It is duly refitted to the bike and the engine started. At 2,900 rpm the rattle has gone! There is still a minuscule residual notion of a rattle but nothing that could be noticed as anything other than the regular shakes and shudders from any machinery. Woohoo!
So - the other vibration?
Sharon is now complaining of vibes through the 'bars at motorway speeds. I take the Z5 out for a blast and sure enough it's not like the bike is trying to disassemble itself at 70 but it feels harsh and buzzy rather than the silky smooth you experience at say 55. Hmmm.
Quite some time ago I purchased a CLR125 City Fly from a friend who was still on L plates. The bike ran just fine and dandy with 10,000 miles on the slock but I noticed when I got it above 55 it was harsh and buzzy too. With my friend being a learner and the bike being used mostly for town commuting I daresay this bike had seldom seen 55 and above. After a few months in my abusive hands I noticed the vibes had subsided at these higher speeds.
It were a reet gud bike my City Fly
I have a working theory - it's as though *SOMETHING* needed bedding in at higher speeds. Clutching at straws perhaps there's a few microns of barrel that aren't reached until the piston is moving fast enough to fling the piston a micron higher and lower. I don't know...
When I'm on the motorways with the CB500X I'll cruise at 55-60 happily, keeping with the trucks in the left lane and relaxing, not stressing about speed limits and changing lanes and drinking fuel and wearing out tyres. When I get up there to 70 my CB500X feels harsh too, buzzy and busy and annoying.
I've made a point these last few years to ensure I get the damn thing up to speed more often. It helps clear the engine, gives the motor a chance to breathe and clear it's lungs. I'll do 5 or 10 miles then drop back to my leisurely pace. Having done this I've noticed it's less vibey and harsh. Again it's as though the last bit of running in is finally done.
Sharon got her Z5 with about 360 miles on the clock. She's been sure to keep the revs down until the Z5 passed the 600 mile mark and now we're gradually building the revs. I am wondering and hoping the harshness at motorway speeds will pass as it has in the previous examples. We shall monitor the situation.
I get the feeling Sharon is slowly but surely coming to terms with the loss of the much beloved Z4, and slowly but surely coming to terms with the Z5. Maybe she will come to love the Z5 too one day? Again only time will tell.
