CB500X Tappet Time Again

Job Date 4-8 March 2023

Urgh. No. Anything but. It's not CB500X tappet time again surely? Don't call me Shirley.

Actually it's only about 12,000 miles since I last checked them, they're "due" every 16,000 miles so I'm doing them early. Why? I have plans for Spain in September, there might be a trip to Scotland this summer and hopefully lots of weekend camping trips over the spring, summer and autumn. This means I'd have the bike in bits when I want to be riding. I've no trips upcoming presently and it's still winter, although I can feel spring in the air. Let's get them done NOW so I don't need to worry about them when I want to be riding.

Majestic grand scenery of hills and mountains in Scotland
I'd rather be riding here...

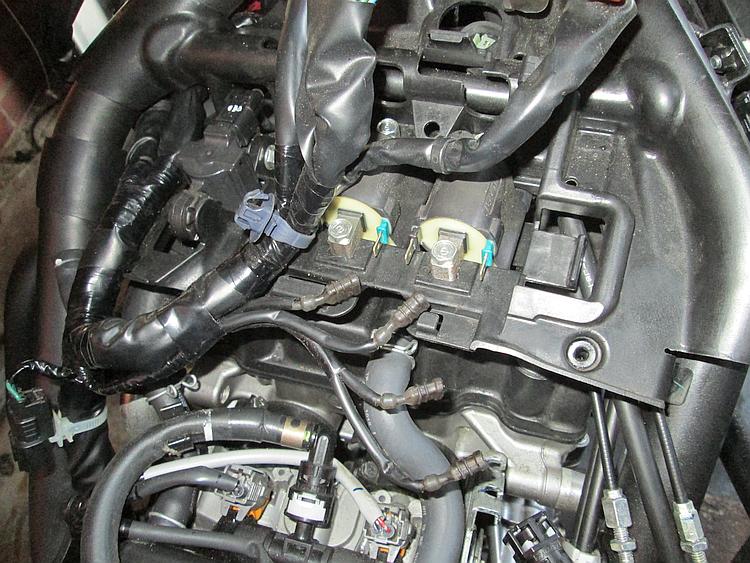

A tangled mess of wires, pipes, components and connectors under the tank of the 500
...than dealing with this little lot.

It's a miserable job. The actual checking and replacing of shims is remarkably easy for an overhead cam engine, the camshafts do NOT need to be removed. It's GETTING to the shims that's the freaking nightmare. 4 plastic panels need to be removed, 2 of them are majorly fiddly. Tank off, being a modern bike this involves electrical connections, high pressure fuel pipe, and several breather/emissions pipes as well.

Then there's the "tray" under the tank. Wires, pipes, emissions, all specifically designed to be efficiently assembled in a factory in Thailand and incredibly inefficiently disassembled in a shed in Bolton. Oh, and the rocker cover can be removed but only in one very very specific way that includes a twist to the left, a triple backflip summersault, incantations to the god of the 4th dimension, and a doctorate in Hondaology.

I have learned NOT to try and do the tappets all in one block of continuous work. I get tired and confused, I get frustrated and angry. I panic, I'm very good at panicking. I have informed Sharon I plan to use the car this weekend coming, and I psyche myself up. On Monday I simply remove the 4 panels. I want to continue but I tell myself no, I go and watch YouTube and TV.

Tuesday evening tank off and get the godawful under tank tray off to one side. Start cleaning (I don't want to fill the cylinder head with road dirt). Wednesday more cleaning, coolant pipe off, more cleaning, remove rocker cover, first check of tappets. All inlets are 0.16mm, spot on. Exhaust should be 0.27mm, I have 0.35, 0.32, 0.33 and 0.26. It's unusual for tappets to be loose these days.

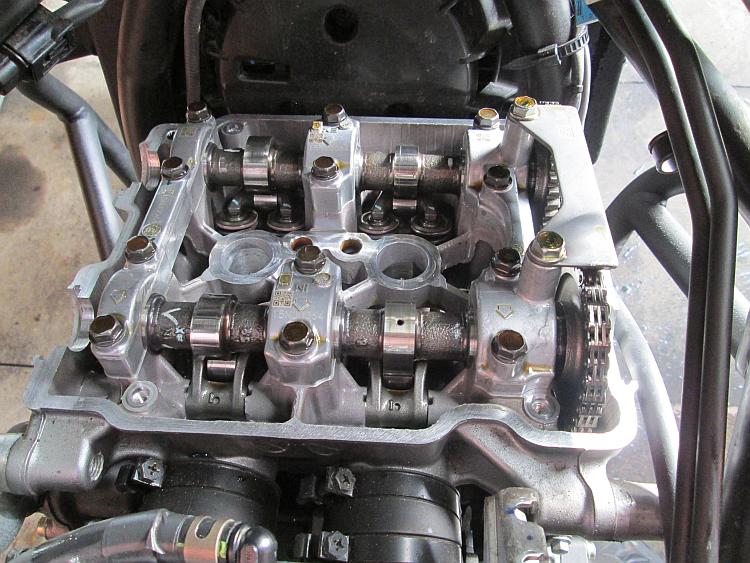

The valve train of the CB500X
I suppose I gotta be here...
Ren's CB500X loaded with camping luggage
...before I can be here.

Wednesday recheck and adjust. At the exhaust I end up with 0.30, 0.28, 0.31 and 0.26, that'll do me. Rocker cover back on. Watch YouTube.

Thursday rebuild back to getting the tank back on. Start the bike for 5 seconds as I don't want another heat cycle on the engine and I don't want to put the panels back on only to find I've missed connecting a wire under the tank or something. It starts immediately.

Friday panels back on, push the bike out ready for a shakedown ride. Kft kft kft kft... Poop. Kft kft kft kft kft kft kft. Oh holy double poop and testicles. Kft kft kft kft brum kft kft kft kft brum brum kft brum brum brum. It did not want to start. Once running it runs perfectly. I take a 55 minute ride and it behaves exactly as I'd expect it to. What was all that about?

I've arranged to use the car this weekend, but I want to use the bike now. However Sharon's side stand on the Z400 has been shortened but it's still not quite short enough. As such I'm taking my welder to hers to shorten the stand a little more and I can't get the welder on the back of the bike. I'm in the car. I spend the weekend stressing, fretting and worrying about why my 500 is not starting quickly.

Sunday I check the battery voltage - 12.89 volts after resting the whole weekend. That's good. Can batteries give good voltage but poor amperage? Google confirms this and the suggestion is to crank the engine and see what the voltage drops to. I can't disconnect the spark plugs without removing the panels, the tank, and the godawful tray. I'll just crank it anyway and measure the voltage.

Kft-brum brum brum, not a moment's hesitancy. Swine.

Share your tale - click here.
