Wibbly Wobbly Rear End

Repair Date 24 December 2019

By Ren Withnell

About 4 or 5 weeks ago I went from on the power to off the power. There was the usual snatch from the chain as the slack at the bottom becomes the slack at the top. Alongside this expected sensation was an unexpected sensation, the rear stepping out. Only microscopically so, I'm not talking a full on Marquez rear wheel steering into the bend here, just the merest hint.

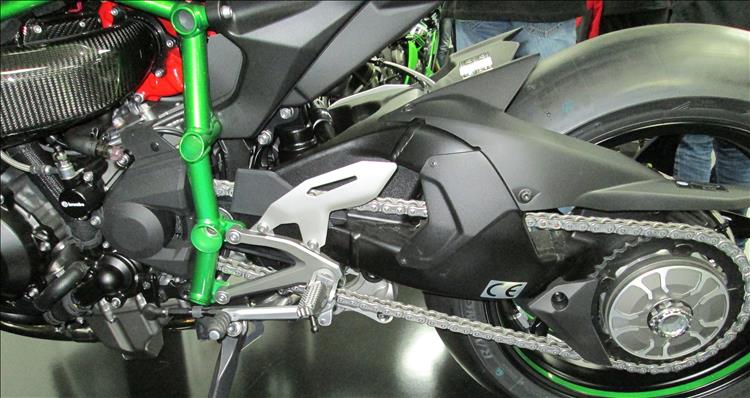

The rear of Kawasaki's flagship H2R racing motorcycle
With over 300bhp at the rear the H2R can be a bit of a handful.

I'm not on a Kwakker H2R or a 'Blade. I'm not even on my 500, just my humble CBF125. While the CBF125 does have engine braking I suggest this wouldn't be the first choice of motorcycle for budding racers to practice rear wheel steering techniques on. It'll be these cold, wet, salted roads that are slippery. I'll just have to be more subtle on the throttle and easy on the corners.

For the next couple of weeks I notice this peculiar sensation but only rarely. No. No it's not right this, it just happened in a straight line approaching the lights. And it is always twitching to the right. It's as though when the chain snatches it pulls the rear wheel spindle on the chain side. Holy cow! I've forgotten to tighten my rear wheel spindle!!!

Nope. It is still set to 45 foot pounds. The chain alignment marks are still in alignment. Wheel bearings? Nope. There's no play in the rear wheel. Swing arm bearings? Nope. There's no play in the swing arm bearings (bushes, they're bushes not bearings). Headstock bearings? Nope. Front wheel bearings? Nope. I practically MOT the bike and all seems fine. Odd. How odd.

Coming home from work on Christmas eve I'm in first gear crawling through the traffic. I have my left foot resting on the gear lever. That's not right, when coming on and off the power I can feel the gear lever moving, microscopically so but it's there, for sure.

Wait a minute. Hang on. Do NOT tell me the whole bloody engine is loose in the frame?!?! I gingerly complete the next 2 miles.

Nope. The motor is secure. So - what the duce? The footrest hangar is loose not the engine. The footrest is secured to the bike at 2 points, one to the frame and one through the swingarm bolt. It's all starting to make some sense now isn't it Ren. Yes Ren it is.

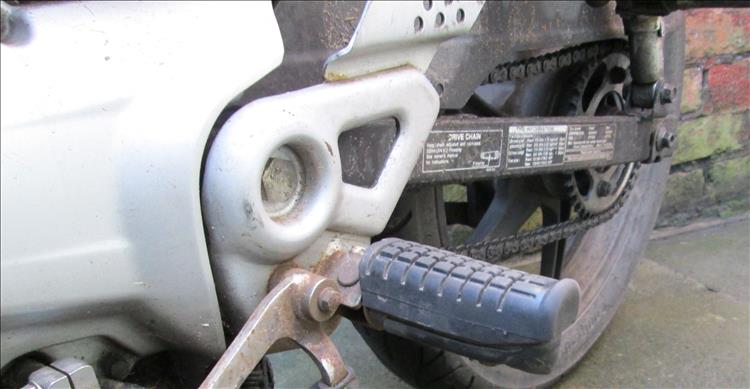

On the CBF125 we can see the plate that holds the footrest is held on by the swing arm bolt
The footrest hanger hangs off the swingarm bolt.

If the footrest is loose and wobbling on the swingarm bolt I can reasonably deduce the swingarm bolt is loose. If the swingarm is loose I can reasonably deduce this is the cause of my rear end steering. Yes. Erm. The swingarm nut on the swingarm bolt is loose. By several threads loose. My Haynes manual suggest a torque of 40 ft-lbs for the swingarm bolt. It does not seem enough, not at all, yet I kow-tow to Honda's superior technical knowledge and torque it to 40 foot pounds (and an extra nudge for good luck).

What puzzles me is why could I not feel the loose swingarm when checking the bike? I would have expected while wobbling the rear wheel to have felt the swingarm moving? I know how to test these things I'm not stupid - ahem. I can only offer the excuse that the swingarm was only a bit loose on first inspection. Nice try Ren, nice try.

And why now? After 86,000 miles why would the swingarm come loose now? Admittedly there's no split pin, these nuts are similar to "nyloc" in as much as they have a metal "thing" that grabs the bolt. I suppose this "thing" has done it's job, the bolt has merely come loose not fallen out. Why now? Why not? Deep man... real deep.

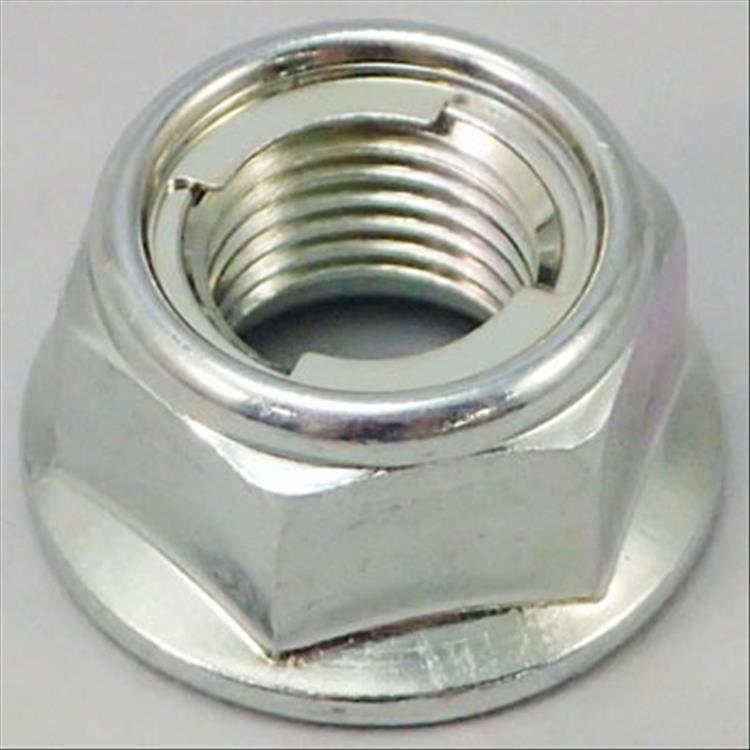

Close up of a nut with a metal insert in the top to prevent the nut from falling off the bolt
It's not a "nyloc" but the principle is the same.
