A DIY Handlebar Clock

Post Received 19 May 2020

By Mark Noel

After the speedometer I reckon that a clock is the next most useful instrument to have on a motorcycle. OK it would be great to have real-time displays of blood and tyre pressures, heart rate, antibody count and the weather forecast but for me an awareness of time is more useful. After all I need to be back in time for tea, else there will be trouble!

Some time ago I made a clock unit for my Jawa which is mounted on the stem of the right hand mirror. Fabrication involved turning three components on the lathe - two of plastic for the main parts and a polished bezel in aluminium. The timepiece comprised a £5 watch from our local bargain shop, and the end result cost only a few pence more, plus a morning in the workshop.

Since then I have entered the world of 3D printing and decided to make another handlebar clock using this technology which provides greater freedom of design, with no need for the hacking of metal or plastic to achieve a good result.

From ebay I bought an inexpensive Casio analogue watch, chosen for its plain white face and bold hands. The straps were removed and the lugs on the plastic case sawn off and filed to form a smooth outline. This shape was digitised and then embodied in a 3D model which comprised three components: the main body containing a recess shaped to contain the watch movement; a backing piece that clamps to this main body and; a black bezel that forms the face of the unit and holds the watch in place.

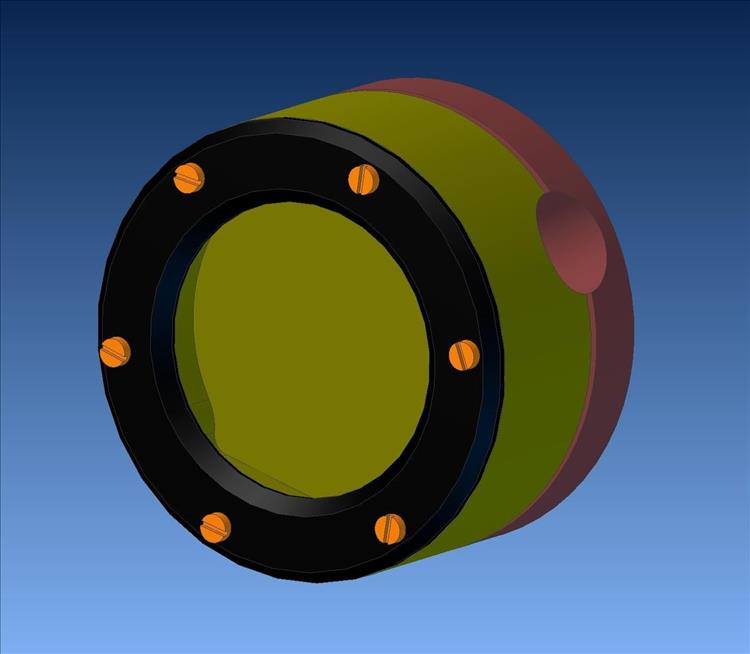

A computerised 3D model of the case so the 3D printer can print out the pieces
3D model of the main parts of the handlebar clock

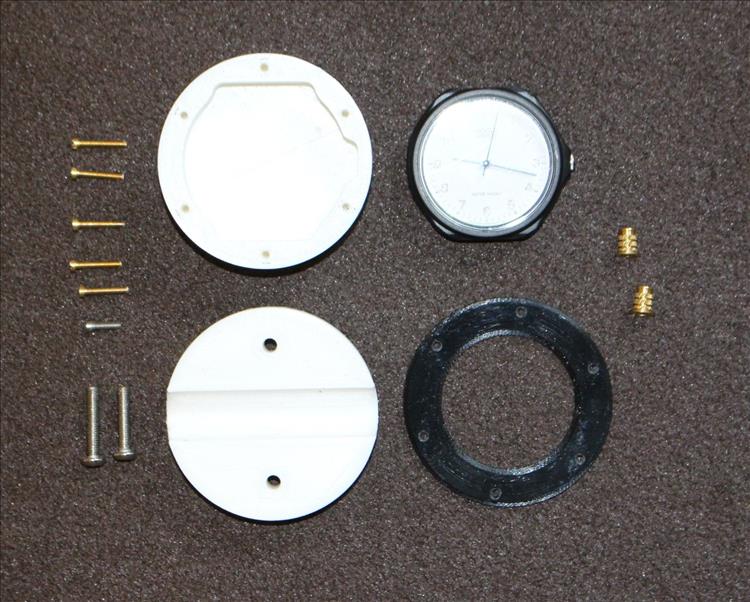

The parts, 3D printed body and bezel and a collection of smart brass screws and fixings
Components of the handlebar clock

The 10mm diameter mirror stem on my Honley 125 rises about 45 degrees from horizontal and so two 4.5mm radius saddles are cut through the mating faces of the main body and backing piece at this angle. M3 brass threaded inserts are heat-staked into the back face of the main body for M3 screws to clamp the unit to the mirror stem by sandwiching together the main body and backing piece.

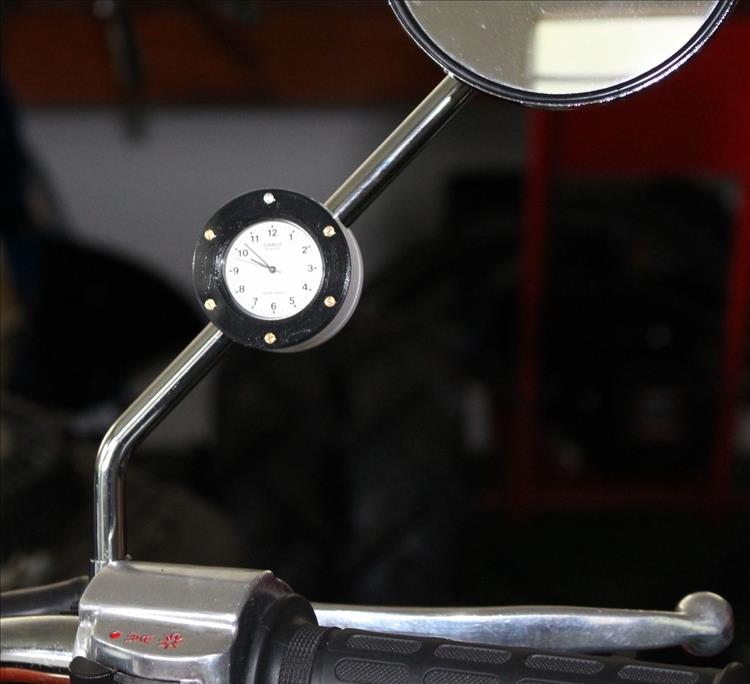

The watch in the 3d printed case secured to the wing mirror's stem, looking very smart
Clock mounted on mirror stem of Honley 125 Turbo

The bezel is fastened to the front with polished and lacquered 10BA brass screws and this black bezel contrasts nicely with the white body of the rest of the unit. The photograph shows the completed watch fitted to the bike and with the help of this accessory I have never missed my tea since!

For those of a technobent these are details of how the unit was made: Alibre Design 3D modelling program, Cura slicing software, printing with Ultimaker Tough PLA on an Ultimaker 3.

Although handlebar mounted clocks for motorcycles are widely available, this has been a fun little project, with the option for customisation and some saving in cost. If you fancy doing something similar then 3D modelling software is available for free, for example in FreeCAD, and there are many folks out there offering to print plastic components at very low cost.

After the success of this venture perhaps I will attempt to build the real-time blood pressure monitor mentioned earlier. However it will need a very wide scale to cope with the stress of motorway riding!
